DQ 190

READY FOR OCCUPATION

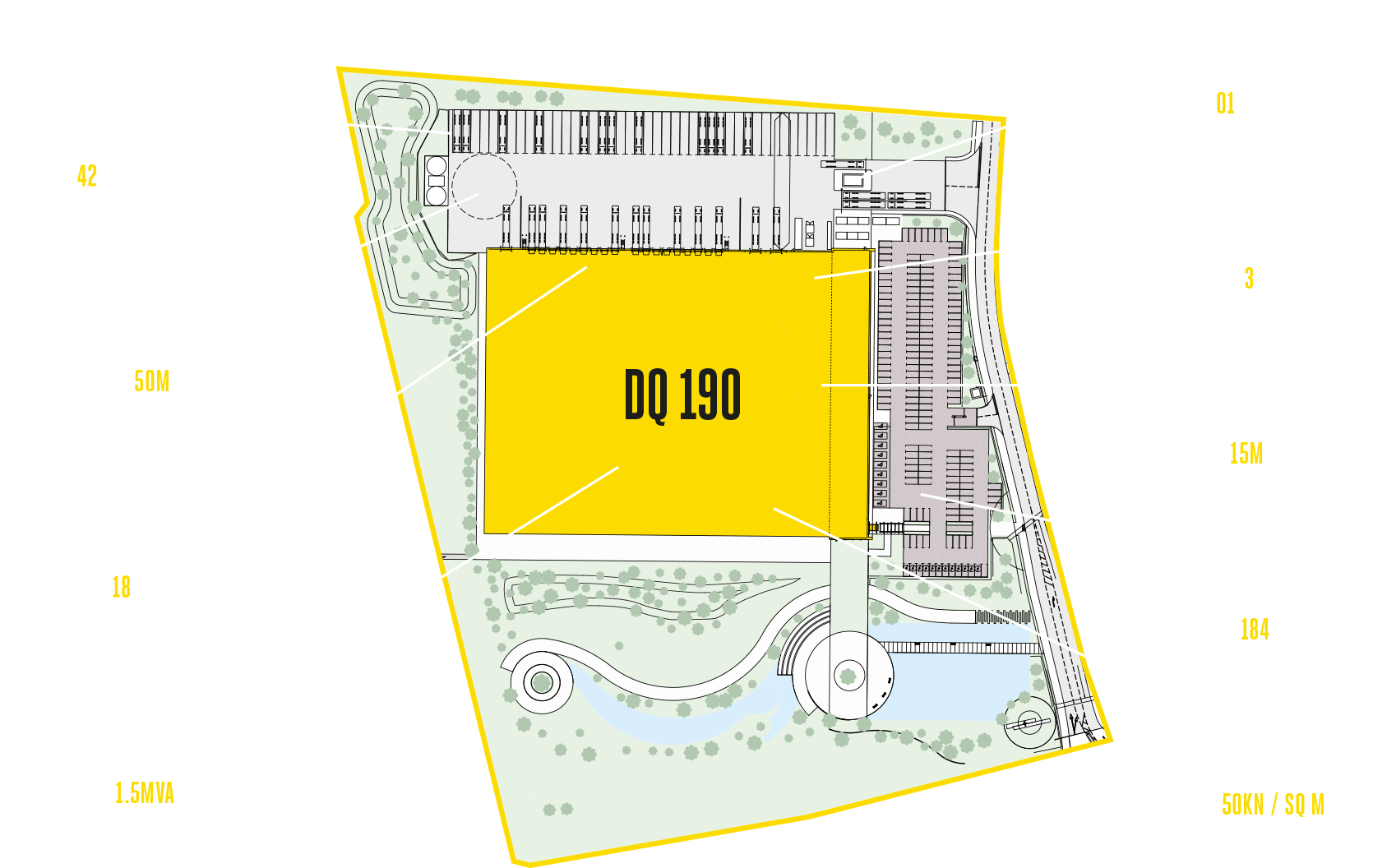

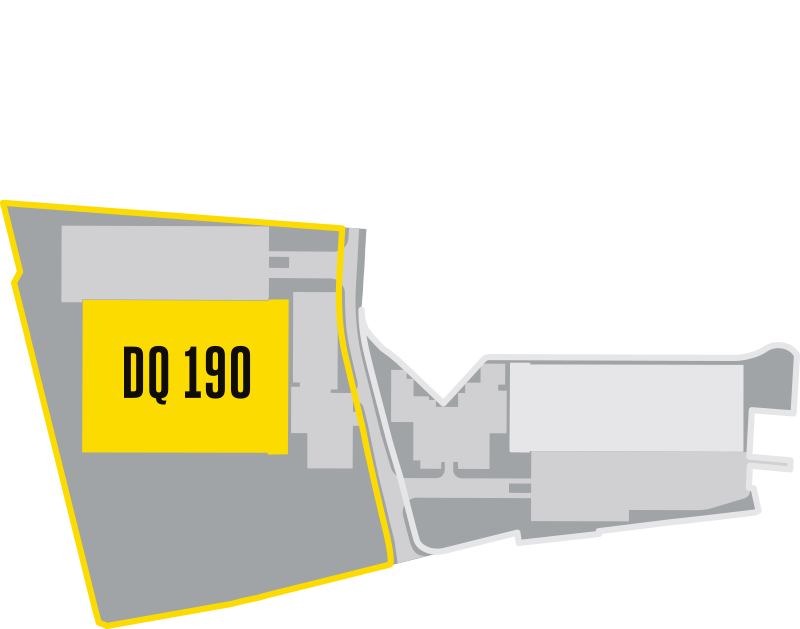

layout key

Site Area
10.15 acre (4.10 HA)

  • SQ FT [GIA]
    SQ M [GIA]
  • Warehouse
    171,920
    15,972
  • Ground Floor Offices
    2,034
    189
  • First Floor Offices
    16,524
    1,535
  • Gatehouse
    236
    22
  • Total
    190,714
    17,718
The second floor deck provides the potential for further accommodation.

Site Specification

  • Access to 5 acres of naturally landscaped amenity space
  • 10% translucent roof panels

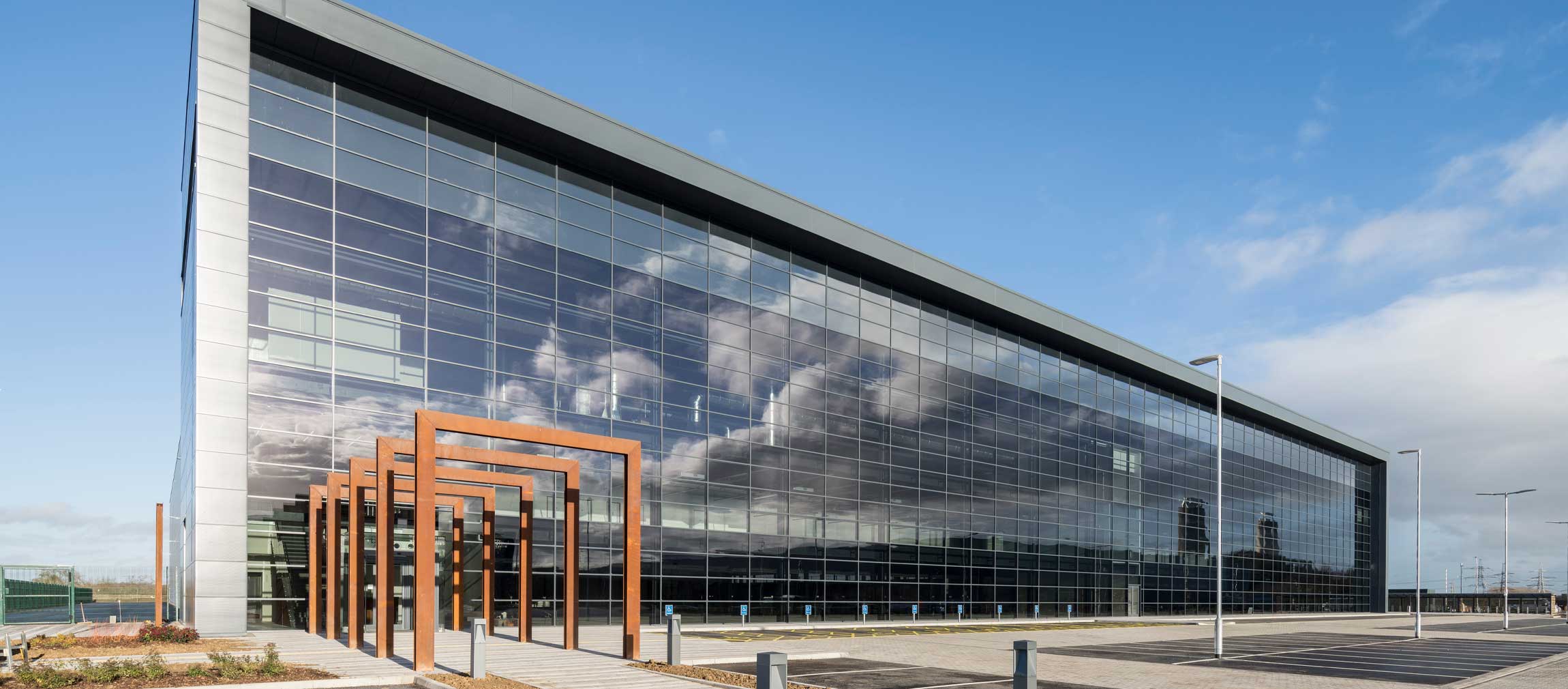

  • Fully glazed 3-storey office facade
  • Breeam excellent
  • EPC Rating A

Layout
Options

layout key
whiteleft blackright
Mixed Use Layout
With Enhanced Office Content
Offices
18,740 - 49,685 sq ft

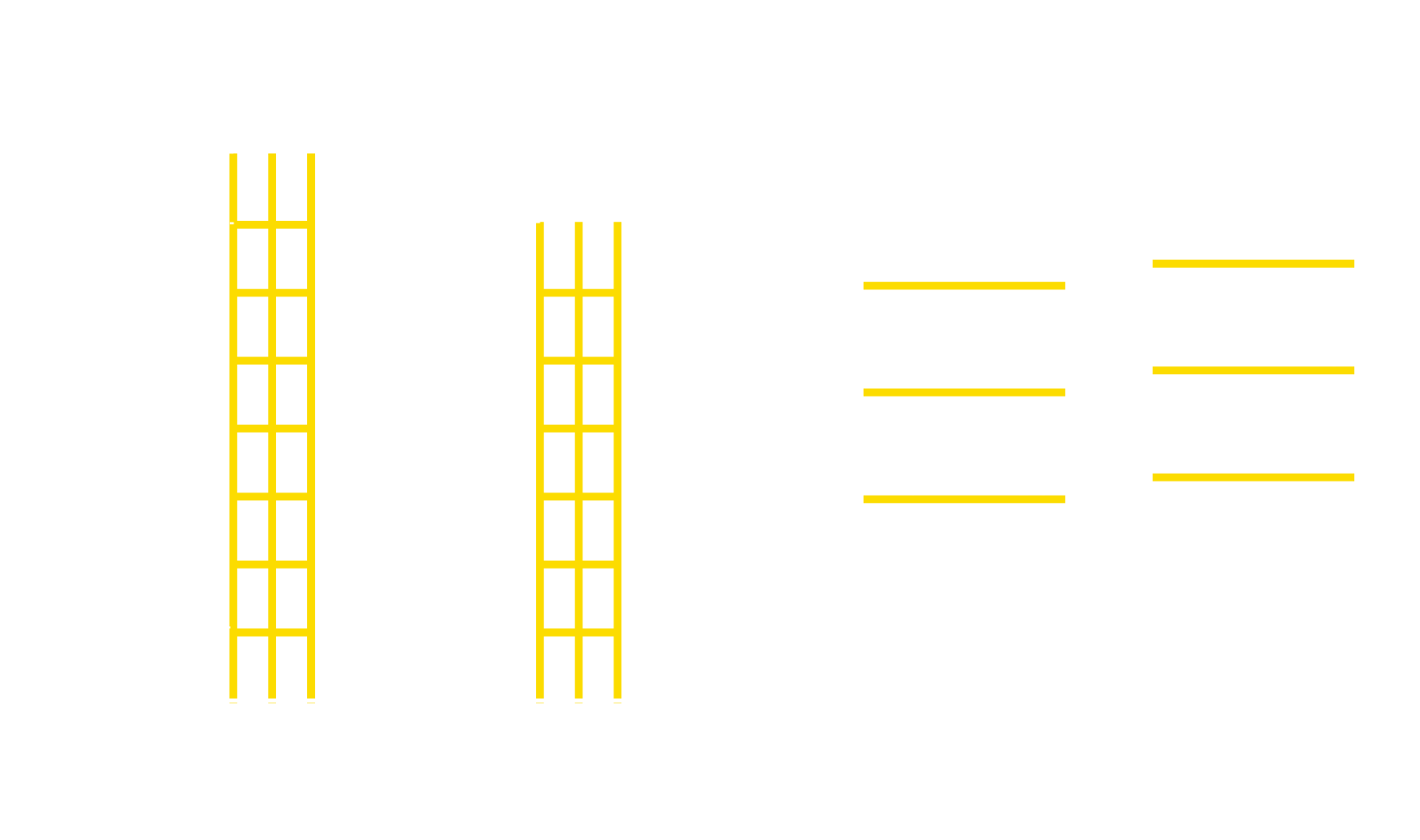

VNA Racking
G+6 Level 2,254 Pallets
G+7 Level 8,096 Pallets
Total 10,350 Pallets
Wide Aisle Racking
G+6 Level 1,666 Pallets
G+7 Level 5,984 Pallets
Total 7,650 Pallets
layout key

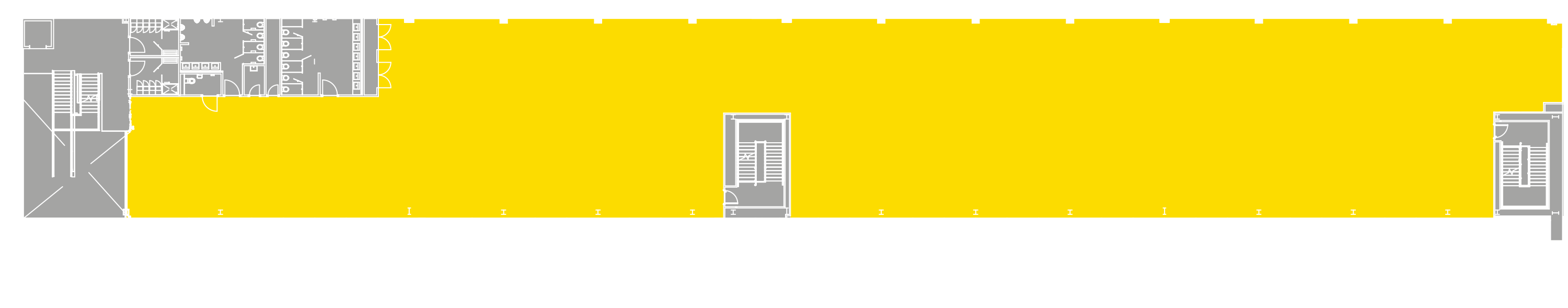

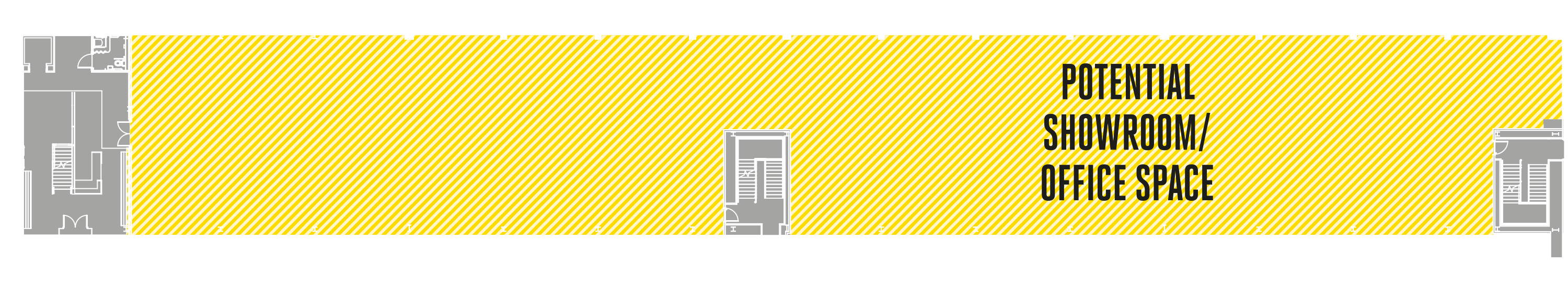

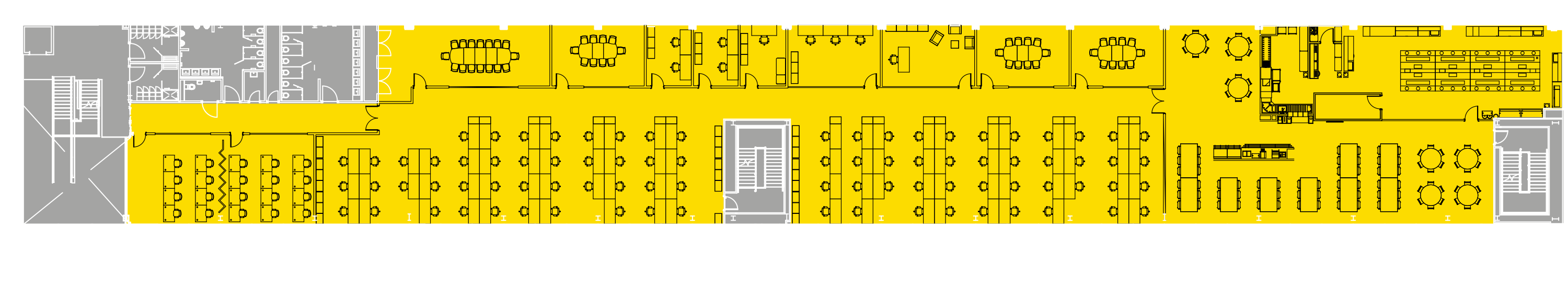

Office Plans

layout key
whiteleft blackright
Ground Floor
15,120 SQ FT (1,405 SQ M)
Base build
Flexible space
Core
For indicative purposes only. Not to scale.

Specification

  • Doors and locks

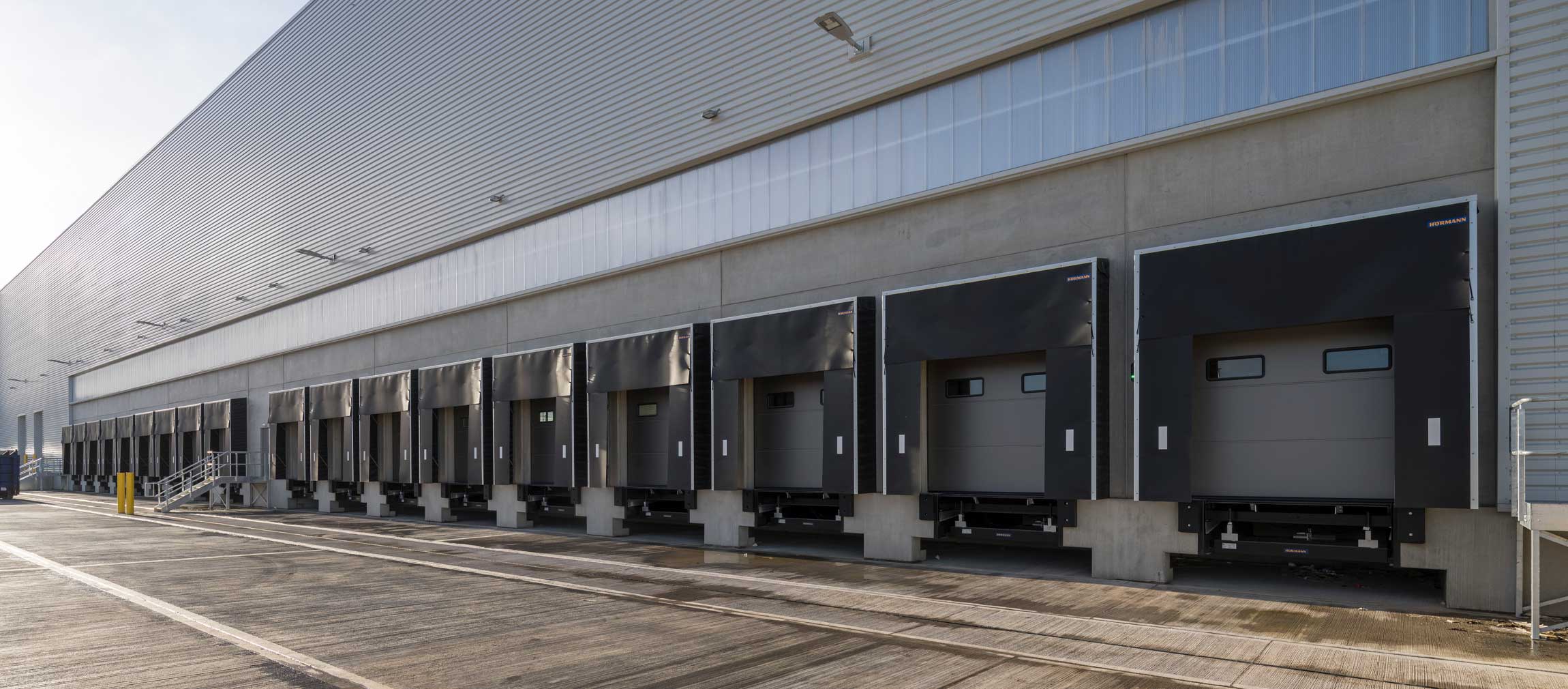

  • Standard Loading Docks
    18 No.
  • Standard Dock Door Size
    2.75m wide x 3m high clear opening
  • Standard Dock Leveller Size
    Will rise to a trailer bed height of 1550mm and fall to a trailer bed height of 1050mm
  • Dock Wall Height
    1.2m
  • Level Access Doors
    3 No.
  • Level Access Doors Size
    4m wide x 5m high
  • Superstructure
  • Haunch Height
    15m
  • Roof Pitch
    Nominally 6 degrees and nominally 4 degrees after deflection
  • Floor slab
  • Warehouse Floor Category
    FM2 as defined by TR34 4th Edition
  • Warehouse Floor Slab Single Racking Leg Load
    Clear height < 15m - 100 kN
  • Envelope
  • Natural Light
    Optimised (max 10%)
  • Rooflights
    10%
  • Rainwater Harvesting
  • Below Ground Tanks Capacity
    Maximum 18 days storage
  • Utilities capacities
  • Gas
    68m3/hr sized for office heating, a kitchen for staff canteen and warehouse heating frost protection to max. 16°C Average
  • Water
    1.6 litres/second
  • Electricity [Base Build Load - Provided]
    750KVA diversified load
  • Electricity [Fit Out Load Estimated - Not Provided]
    1,324KVA maximum [including roller shutter doors]
  • Total power allocation
    1.5 MVA
Downloads
Floor Plans PDF Specification PDF
