DQ 120

Ready for occupation

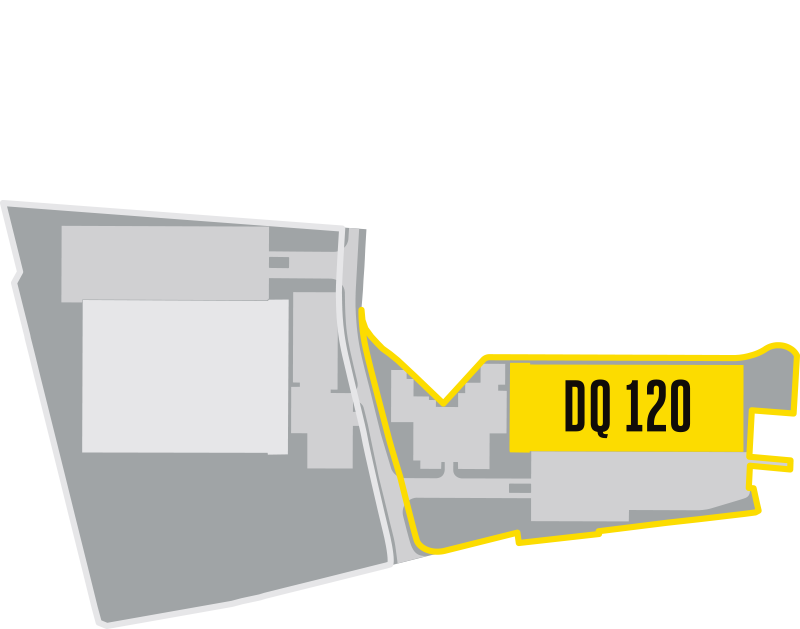

layout key

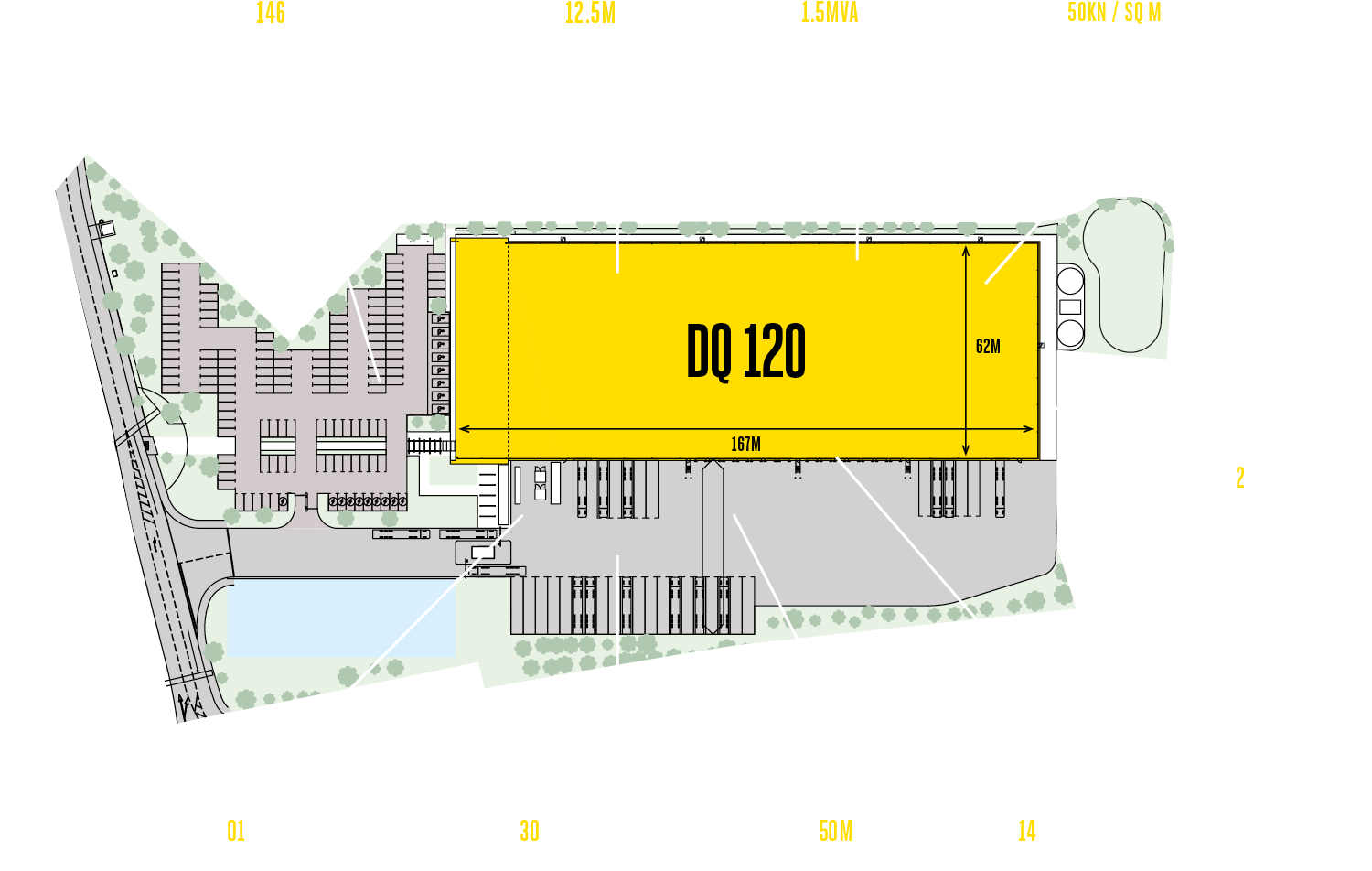

Site Area
8.36 acre (3.38 HA)

  • SQ FT [GIA]
    SQ M [GIA]
  • Warehouse
    110,404
    10,257
  • First Floor Offices
    9,128
    848
  • Reception / Ancillary
    1,704
    158
  • Gatehouse
    228
    21
  • Total
    121,464
    11,284

Site Specification

  • Access to 5 acres of naturally landscaped amenity space

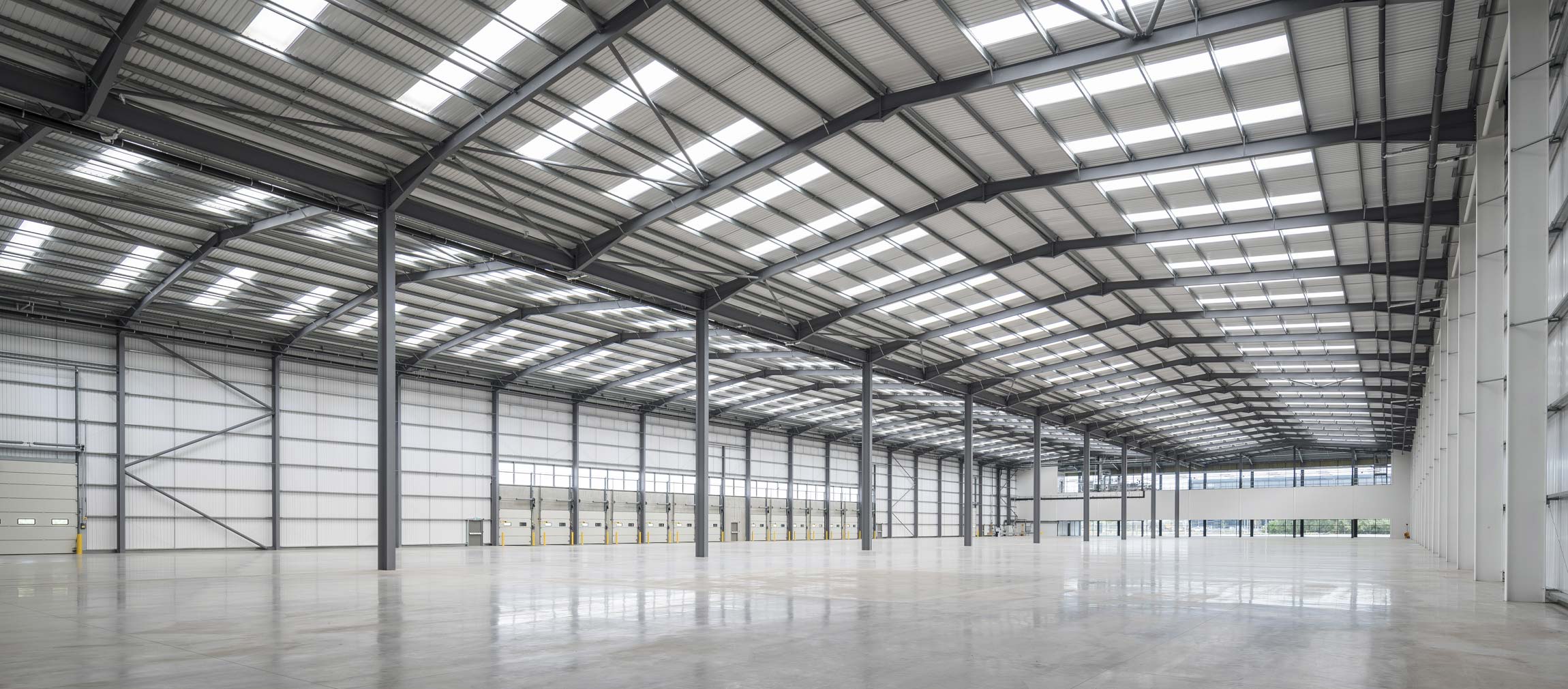

  • 10% translucent roof panels

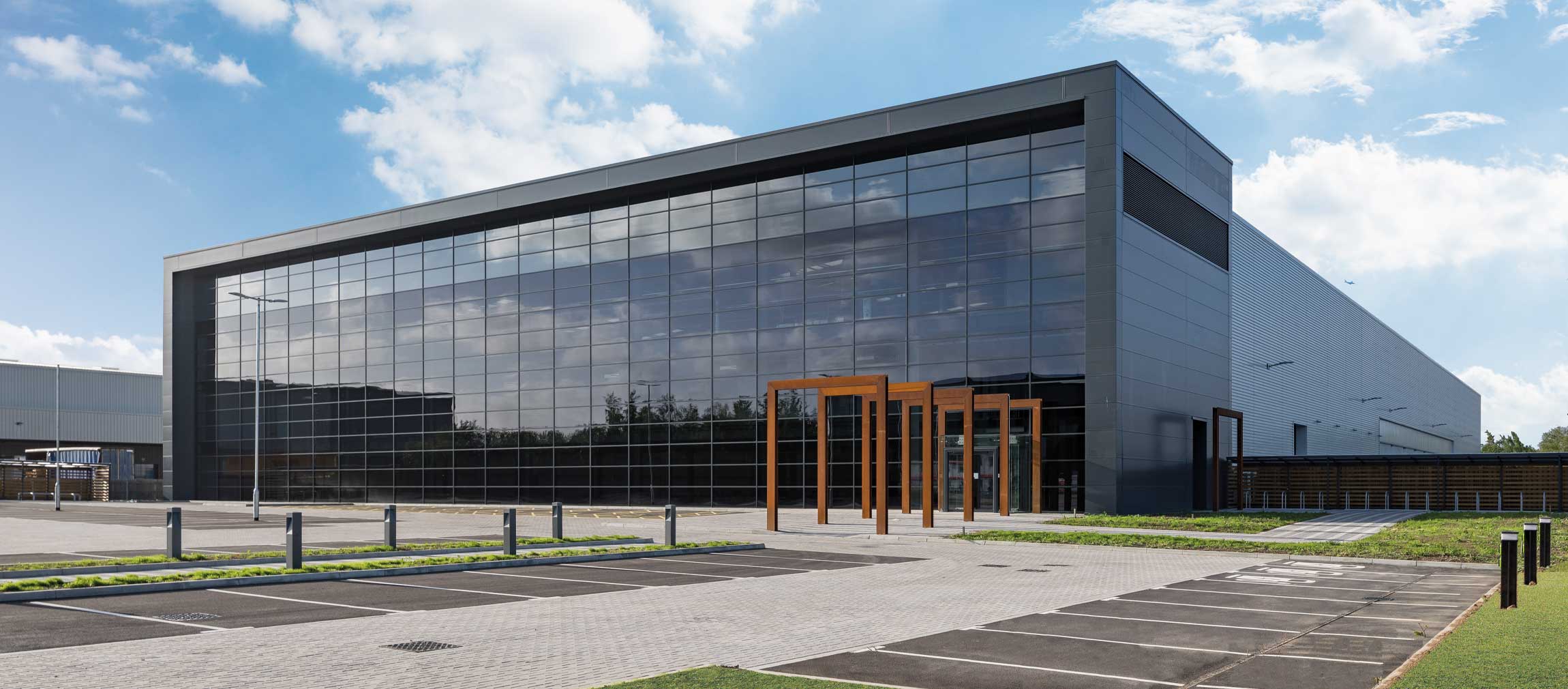

  • Fully glazed 3-storey office facade
  • Breeam excellent
  • EPC Rating A

Layout
Options

layout key
whiteleft blackright

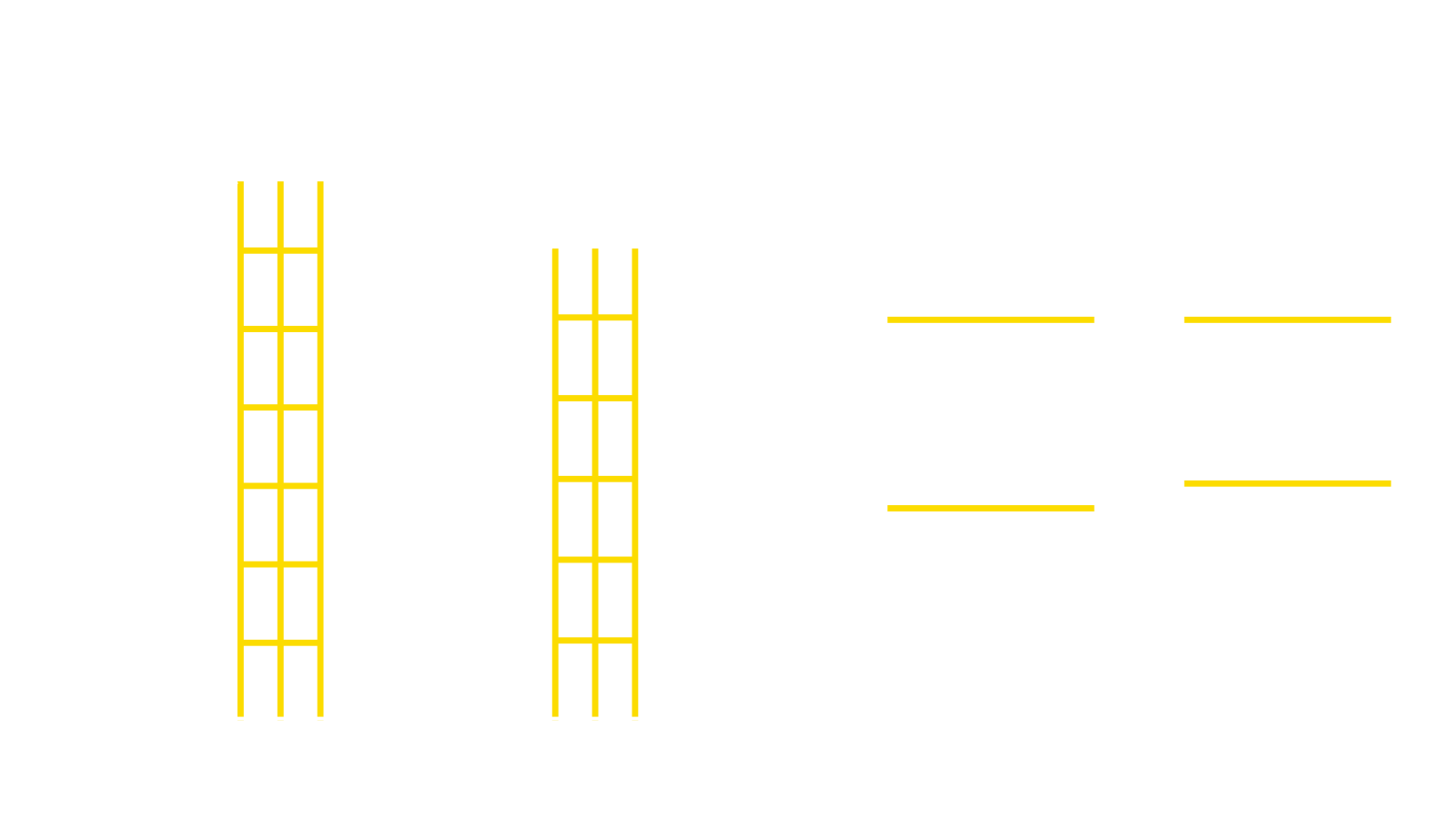

Mixed Use Layout
With Enhanced Office Content
Mezzanine
Floor 12,357 sq ft
Floor 37,071 sq ft
[Ground + 2 Mezzanine
Levels]
VNA Racking
G+5 Level 1,104 Pallets
G+6 Level 5,376 Pallets
Total 6,480 Pallets
Wide Aisle Racking
G+5 Level 744 Pallets
G+6 Level 3,696 Pallets
Total 4,440 Pallets
layout key

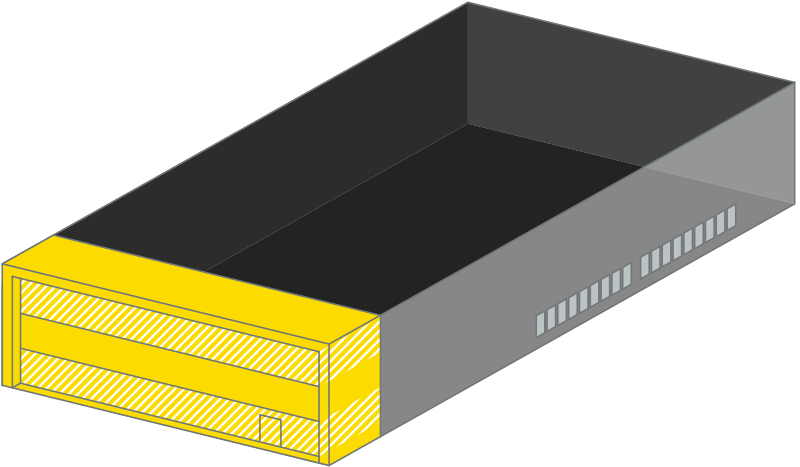

Office Plans

layout key
whiteleft blackright
Ground Floor
8,120 SQ FT (754 SQ M)
Ground Floor Reception Area
1,314 SQ FT (122 SQ M)
Base build
Flexible space
Core
For indicative purposes only. Not to scale.

Specification

  • Doors and locks

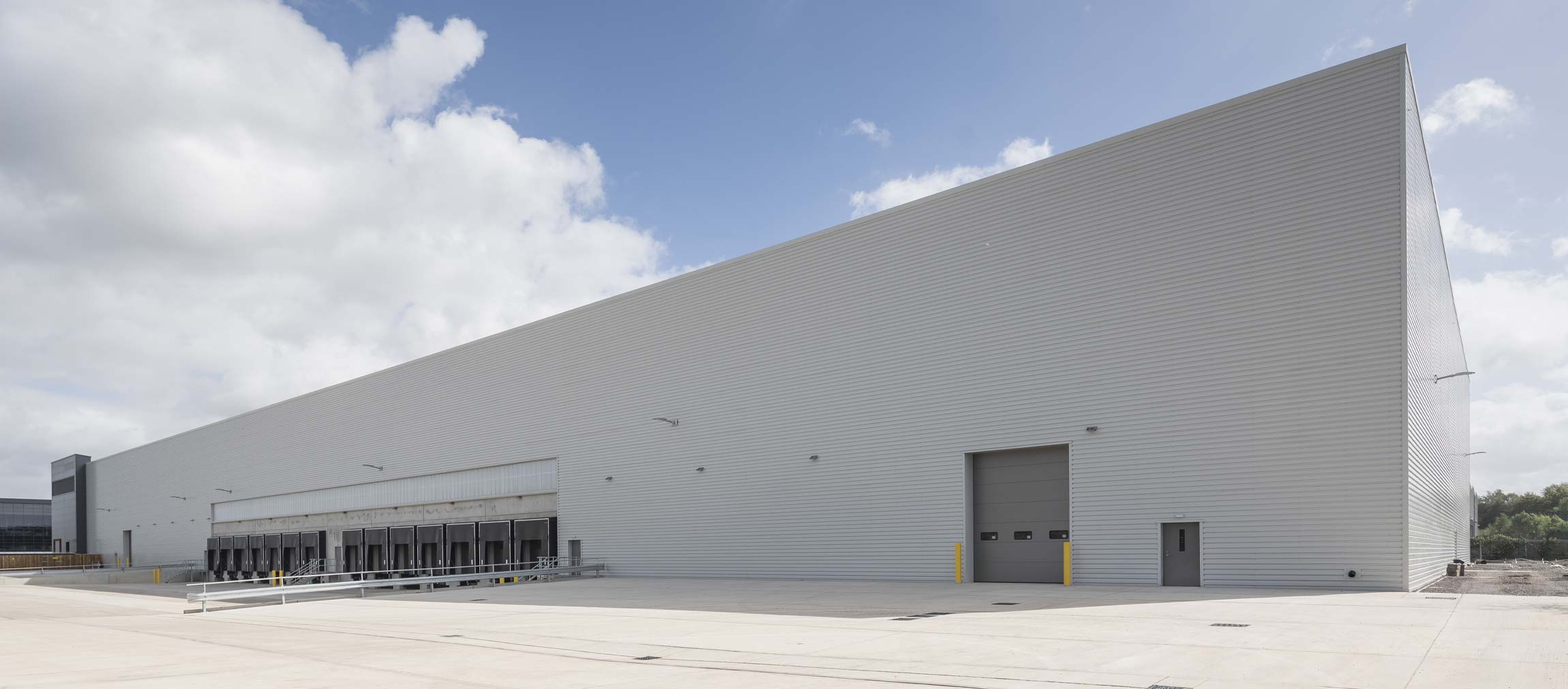

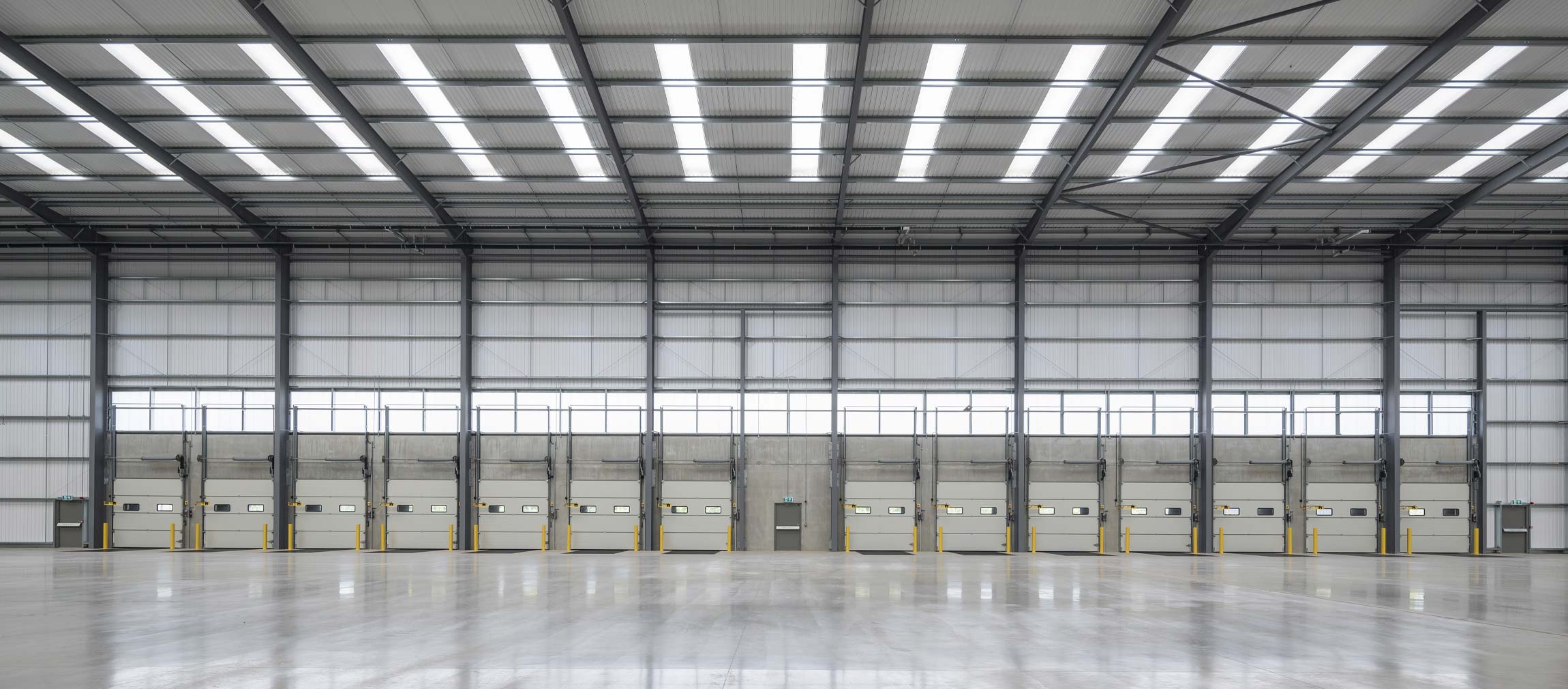

  • Standard Loading Docks
    14 No.
  • Standard Dock Door Size
    2.75m wide x 3m high clear opening
  • Standard Dock Leveller Size
    Will rise to a trailer bed height of 1550mm and fall to a trailer bed height of 1050mm
  • Dock Wall Height
    1.2m
  • Level Access Doors
    2 No.
  • Level Access Doors Size
    4m wide x 5m high
  • Superstructure
  • Haunch Height
    12.5m
  • Roof Pitch
    Nominally 6 degrees and nominally 4 degrees after deflection
  • Floor slab
  • Warehouse Floor Category
    FM2 as defined by TR34 4th Edition
  • Warehouse Floor Slab Single Racking Leg Load
    Clear height < 12.5m - 100 kN
  • Envelope
  • Natural Light
    Optimised (max 10%)
  • Rooflights
    10%
  • Rainwater Harvesting
  • Below Ground Tanks Capacity
    Maximum 18 days storage
  • Utilities capacities
  • Gas
    46m3/hr sized for office heating, a kitchen for staff canteen and warehouse heating frost protection to max. 16°C Average
  • Water
    1.45 litres/second
  • Electricity [Base Build Load - Provided]
    500KVA diversified load
  • Electricity [Fit Out Load Estimated - Not Provided]
    1,410KVA maximum [including roller shutter doors]
  • Total power allocation
    1.5 MVA
